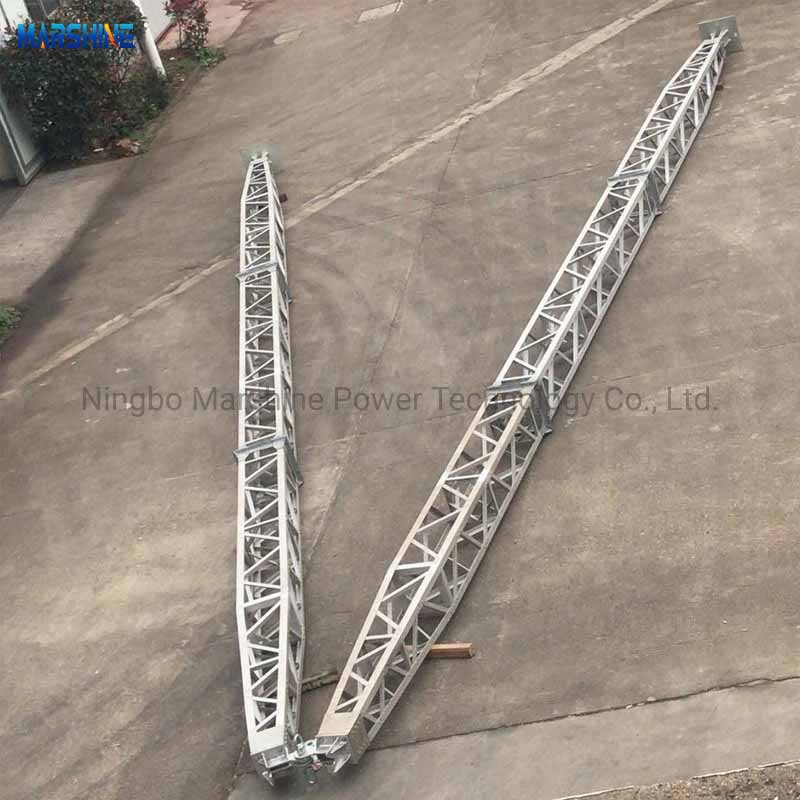

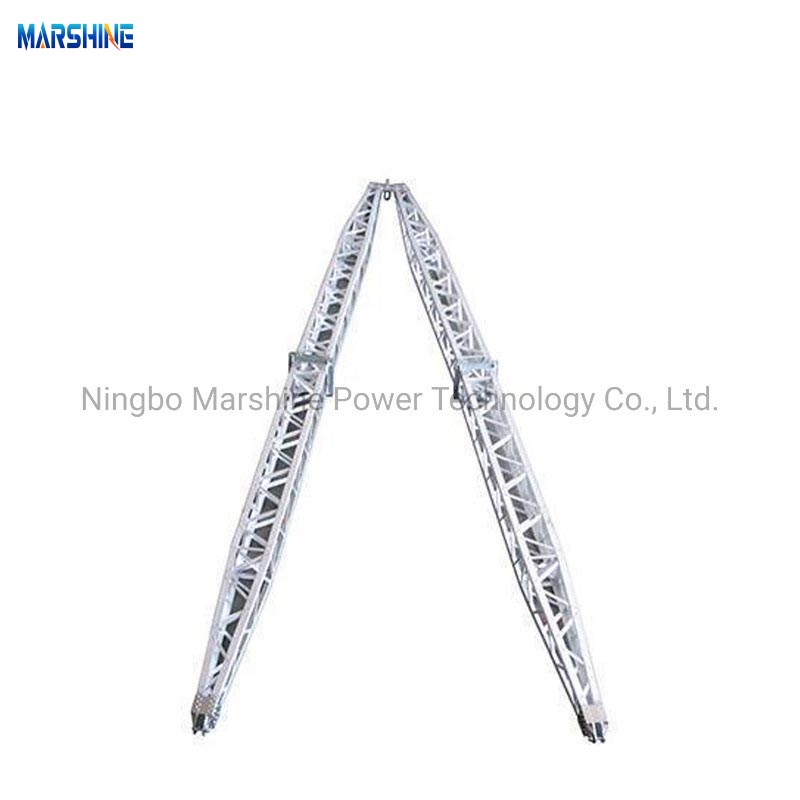

Aluminum Alloy A-Shape Lattice Gin Pole
The MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole is a specialized tool for vertical lifting in transmission line construction, pole installation and tower assembly. The mast features a lightweight yet strong lattice A-type design that provides excellent stability, load-bearing capacity and wind resistance. Made from high-grade aluminum alloy, it is ideal for field operations where portability, safety and reliability are important.
1.Product Parameter
| Itemnumber | Model | Length(m) | Base stroke(m) | Allowablevertical load(KN) | Cross section(m) | Weight(kg/m) |
| 03361 | LBR250-8 | 8 | 2.8 | 72 | 200 | 10.5 |
| 03362 | LBR250-9 | 9 | 3.1 | 56 | ||
| 03363 | LBR250-10 | 10 | 3.5 | 45 | ||
| 03364 | LBR250-11 | 11 | 3.8 | 38 | ||
| 03365 | LBR250-12 | 12 | 4.2 | 32 | ||
| 03366 | LBR250-13 | 13 | 4.5 | 27 | ||
| 03371 | LBR300-8 | 8 | 2.8 | 100 | 300 | 11 |
| 03372 | LBR300-9 | 9 | 3.1 | 87 | ||
| 03373 | LBR300-10 | 10 | 3.5 | 70 | ||
| 03374 | LBR300-11 | 11 | 3.8 | 56 | ||
| 03375 | LBR300-12 | 12 | 4.2 | 47 | ||
| 03376 | LBR300-13 | 13 | 4.5 | 40 | ||
| 03377 | LBR300-14 | 14 | 5.2 | 35 | ||
| 03378 | LBR300-15 | 15 | 5.6 | 31 | ||
| 03379 | LBR300-16 | 16 | 2.8 | 26 | ||
| 03381 | LBR350-8 | 8 | 2.8 | 120 | 350 | 13.5 |
| 03382 | LBR350-9 | 9 | 3.1 | 105 | ||
| 03383 | LBR350-10 | 10 | 3.5 | 94 | ||
| 03384 | LBR350-11 | 11 | 3.8 | 78 | ||
| 03385 | LBR350-12 | 12 | 4.2 | 65 | ||
| 03386 | LBR350-13 | 13 | 4.5 | 58 | ||
| 03387 | LBR350-14 | 14 | 4.9 | 46 | ||
| 03388 | LBR350-15 | 15 | 5.2 | 42 | ||
| 03389 | LBR350-16 | 16 | 5.6 | 37 | ||
| 03391 | LBR400-11A | 11 | 3.8 | 98 | 400 | 14.5 |
| 03392 | LBR400-12A | 12 | 4.2 | 85 | ||
| 03393 | LBR400-13A | 13 | 4.5 | 75 | ||
| 03394 | LBR400-14A | 14 | 19 | 64 | ||
| 03395 | LBR400-15A | 15 | 5.2 | 56 | ||
| 03396 | LBR400-16A | 16 | 5.6 | 48 | ||
| 03397 | LBR400-17A | 17 | 5.9 | 44 | ||
| 03398 | LBR400-18A | 18 | 6.3 | 38 | ||
| 03401 | LBR400-11B | 11 | 3.8 | 147 | 400 | 16.5 |
| 03402 | LBR400-12B | 12 | 4.2 | 129 | ||
| 03403 | LBR400-13B | 13 | 4.5 | 113 | ||
| 03404 | LBR400-14B | 14 | 4.9 | 98 | ||
| 03405 | LBR400-15B | 15 | 5.2 | 86 | ||
| 03406 | LBR400-16B | 16 | 5.6 | 75 | ||
| 03407 | LBR400-17B | 17 | 5.9 | 69 | ||
| 03408 | LBR400-18B | 18 | 6.3 | 60 |
2.Product Feature
High-strength aluminum alloy: Our MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole can provides excellent load-bearing capacity while reducing weight for easier transportation and handling.
A-frame: This structure enhances structural stability while reducing wind resistance, ideal for outdoor work.

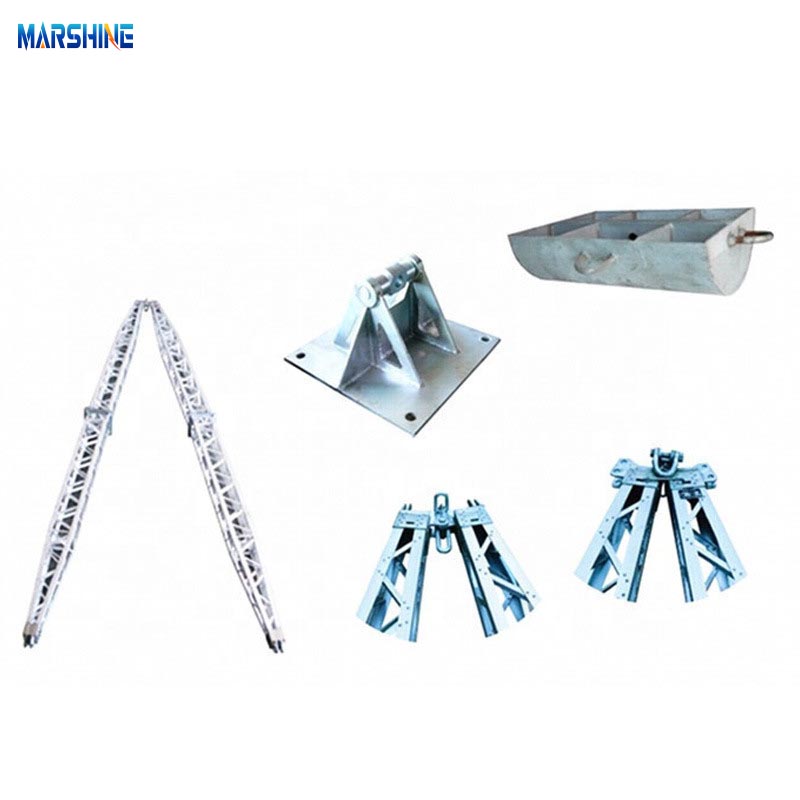

Modular design: With this design, it is easy to assemble and disassemble, interchangeable parts, flexible working height adjustment.
Corrosion-resistant surface: Treated surface for durability even in harsh weather conditions.
Rigging compatibility: Compatible with a variety of pulleys, winches and lifting accessories for a wide range of applications.
Corrosion-resistant: Anodized coating and marine-grade fasteners withstand salt spray, moisture and extreme temperatures (-20°C to 90°C).
3.Product Application
The MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole is ideal for tower construction and line maintenance work.
Lifting operations in mountainous, remote or restricted-access work sites.
Temporary lifting support for live line projects.
Erection of telecommunication towers in mountainous areas.
Installation of wind turbine nacelles and blades.
Lifting of substation equipment (transformers, circuit breakers).
Bridge suspension rigging.
Emergency repair of storm-damaged infrastructure.

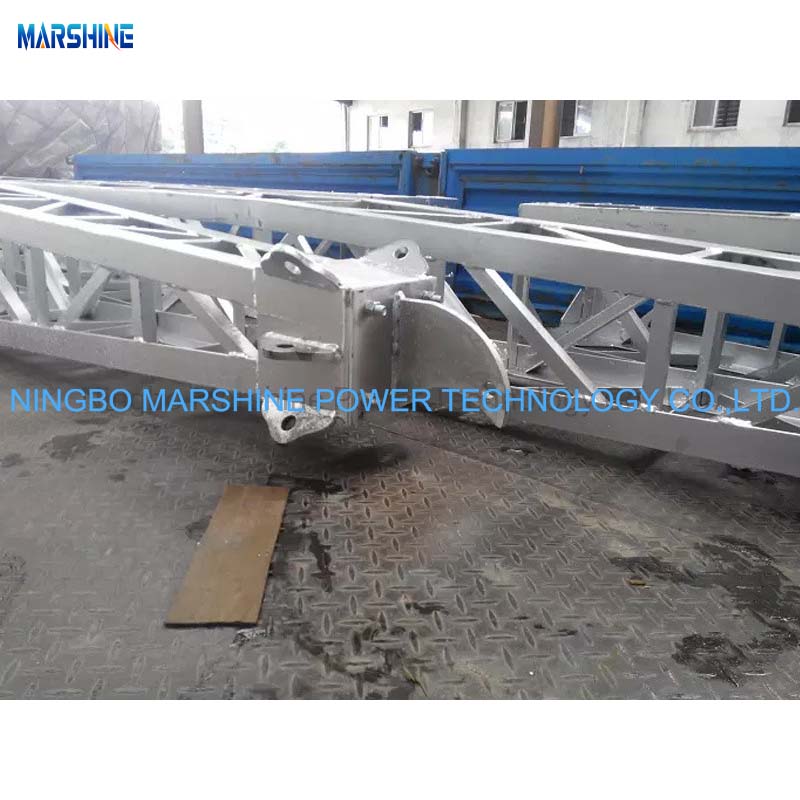

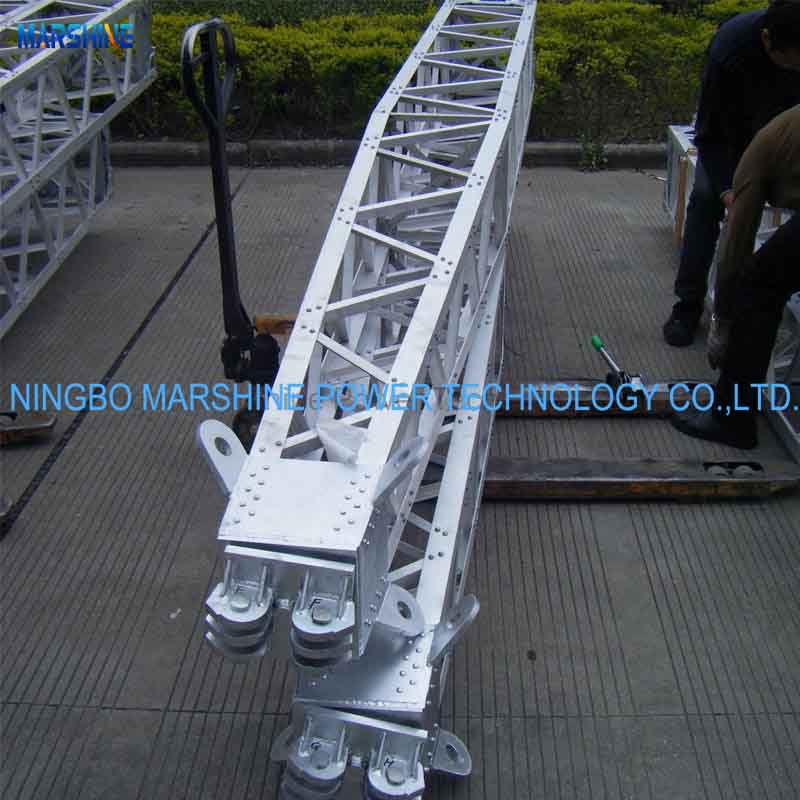

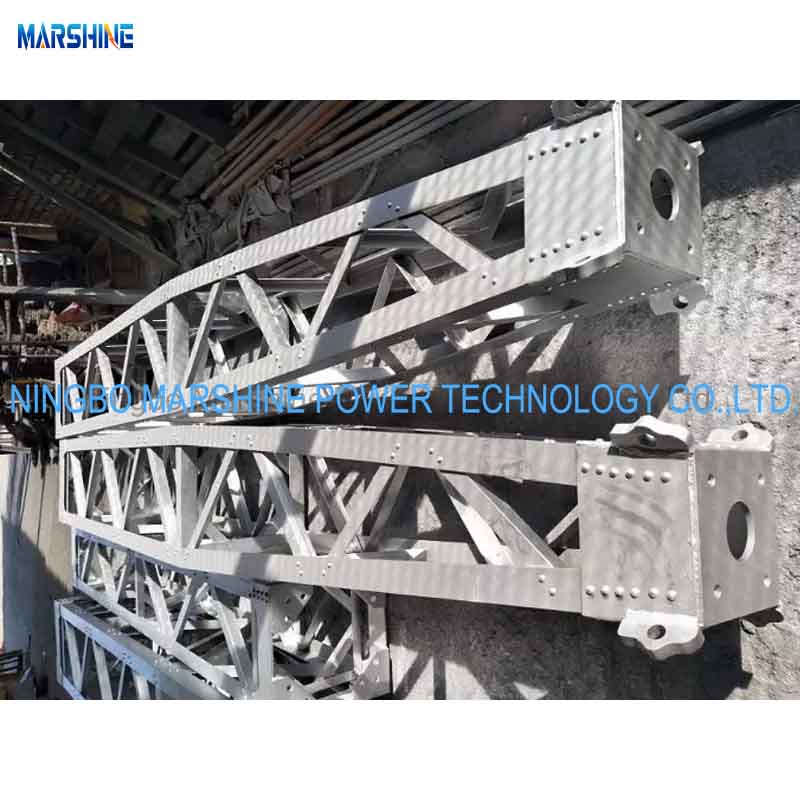

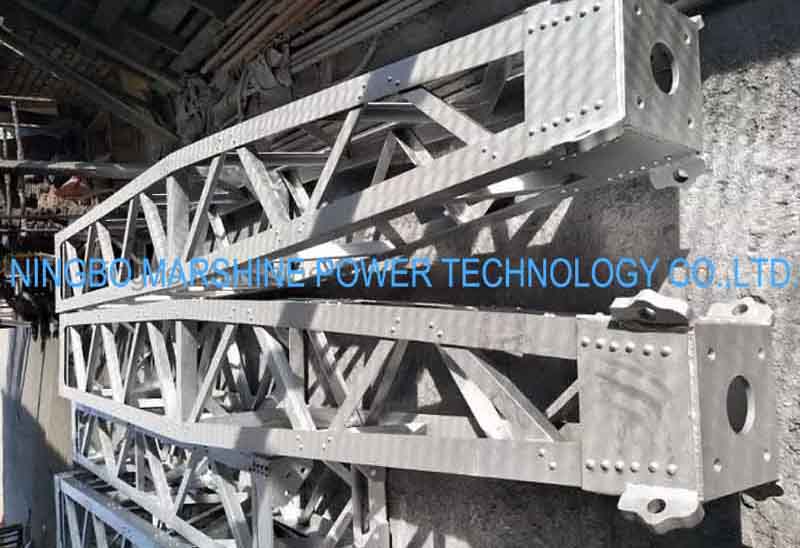

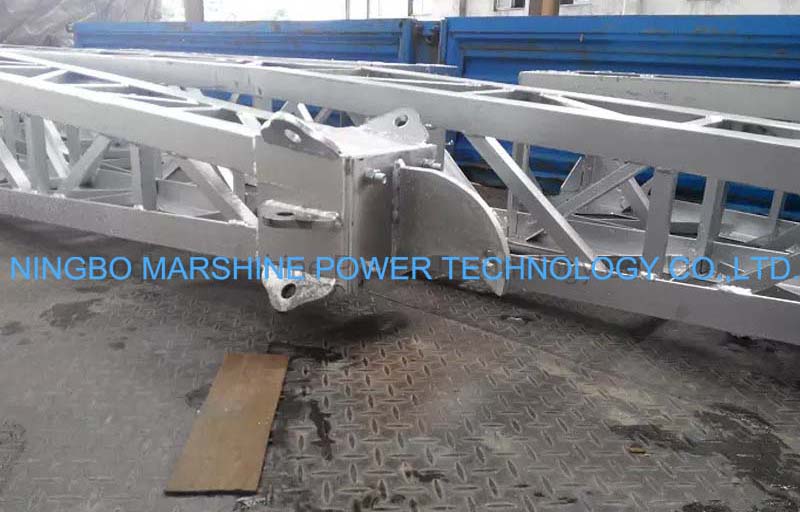

4.Product Details
Its lightweight design, high strength, and easy assembly make MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole an essential tool for modern utility and construction teams. Bellow are some details for this gin pole:
Industry Leader in Line Construction Tools: MARSHINE is a globally trusted brand known for superior quality, safety and performance.
Proven Reliability: Our products are field-tested and approved by utility companies worldwide.
Cost Effectiveness: Reusable components reduce equipment costs by 40%, with no welding or specialized tools required.
Increase Your Lifting Capabilities: Merges industrial-grade power with unmatched portability enables construction crews to accomplish the heaviest lifting tasks in the most inaccessible locations.
